Description
High-performance LED lights with 110° beam angles, 1-10V dimming, and optional motion sensors. Durable, energy-efficient, UL/cUL/DLC certified, with a 50,000-hour lifespan and 5-year warranty—perfect for warehouses and large indoor spaces.
Construction
• Rugged cold-rolled steel plate corrosion-resistant housing.
• 1-10V dimming driver standard for 10% to 100% dimming.
• Selectable CCT and wattage
Electrical
• Four adjustable Wattage: 100%-80%-60%-40%
• 120-277VAC or 347-480VAC input voltage
• >0.9 power factor
Optics
• CCT adjustable: 4000K,5000K(330W/400W Only for Single CCT)
• 110° beam angle
• 150LM/W
Weight
• 130W：4.62lb
• 165W&210W：5.39lb/5.75lb
• 240W：6.17lb
• 300W：8.97lb
• 330W&400W：9.88lb/9.92lb
Model
• LH01-130W-27V(48V)DDK
• LH01-165W-27V(48V)DDK
• LH01-210W-27V(48V)DDK
• LH01-240W-27V(48V)DDK
• LH01-300W-27V(48V)DDK
• LH01-330W-27V(48V)50K
• LH01-400W-27V(48V)50K
Note: “27V” represents 120-277VAC, “48V” represents 347-480VAC
Accessories(Optional)
• Motion Sensor(MHANT12VPHB02_10-15VDC)
• Emergency Battery
• Remote Control
• Pendant kits
• Wire Guard
• PIR Sensor
Certifications
• DLC 5.1 Premium
• UL cUL
Mount

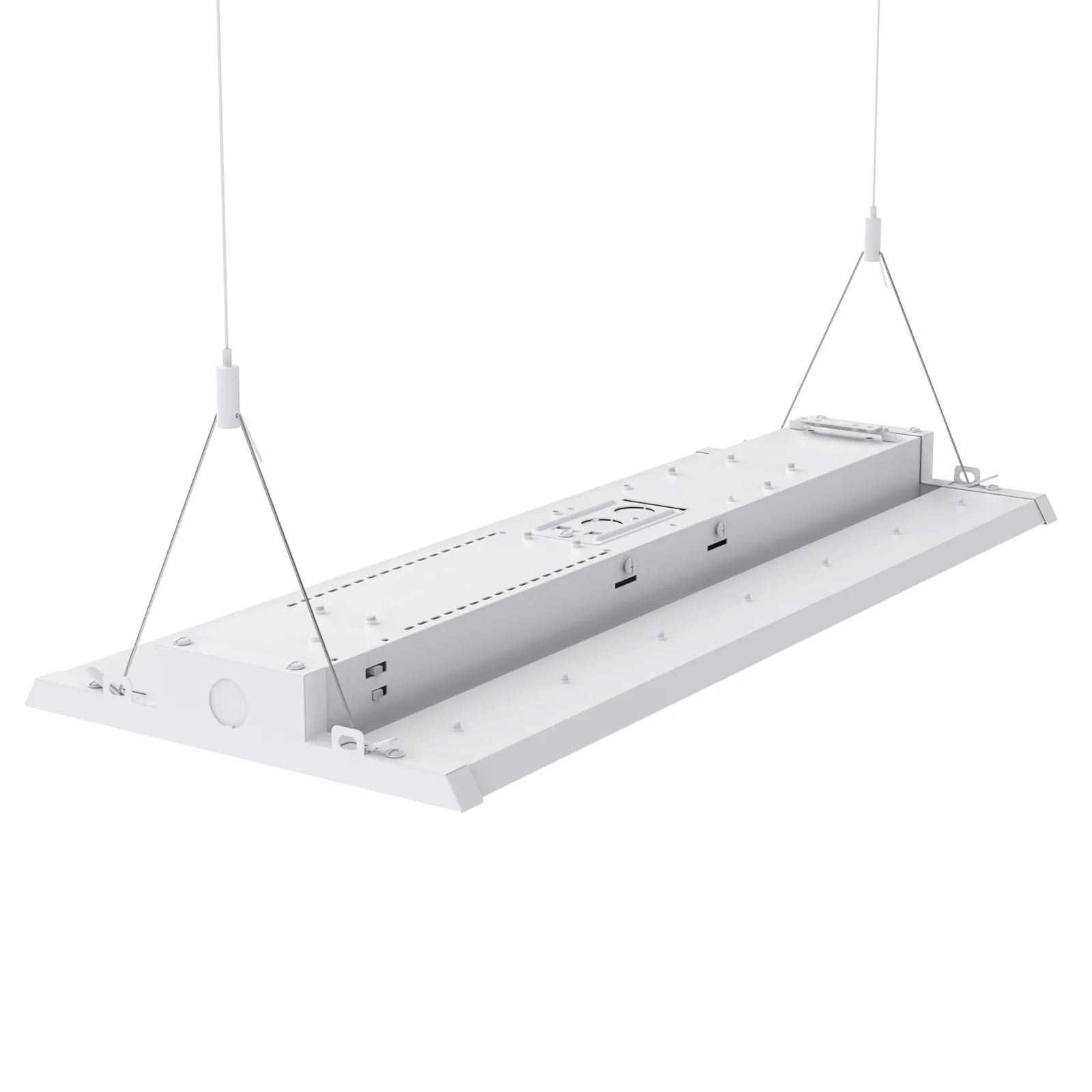

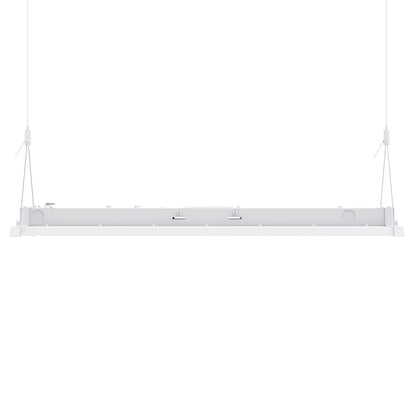

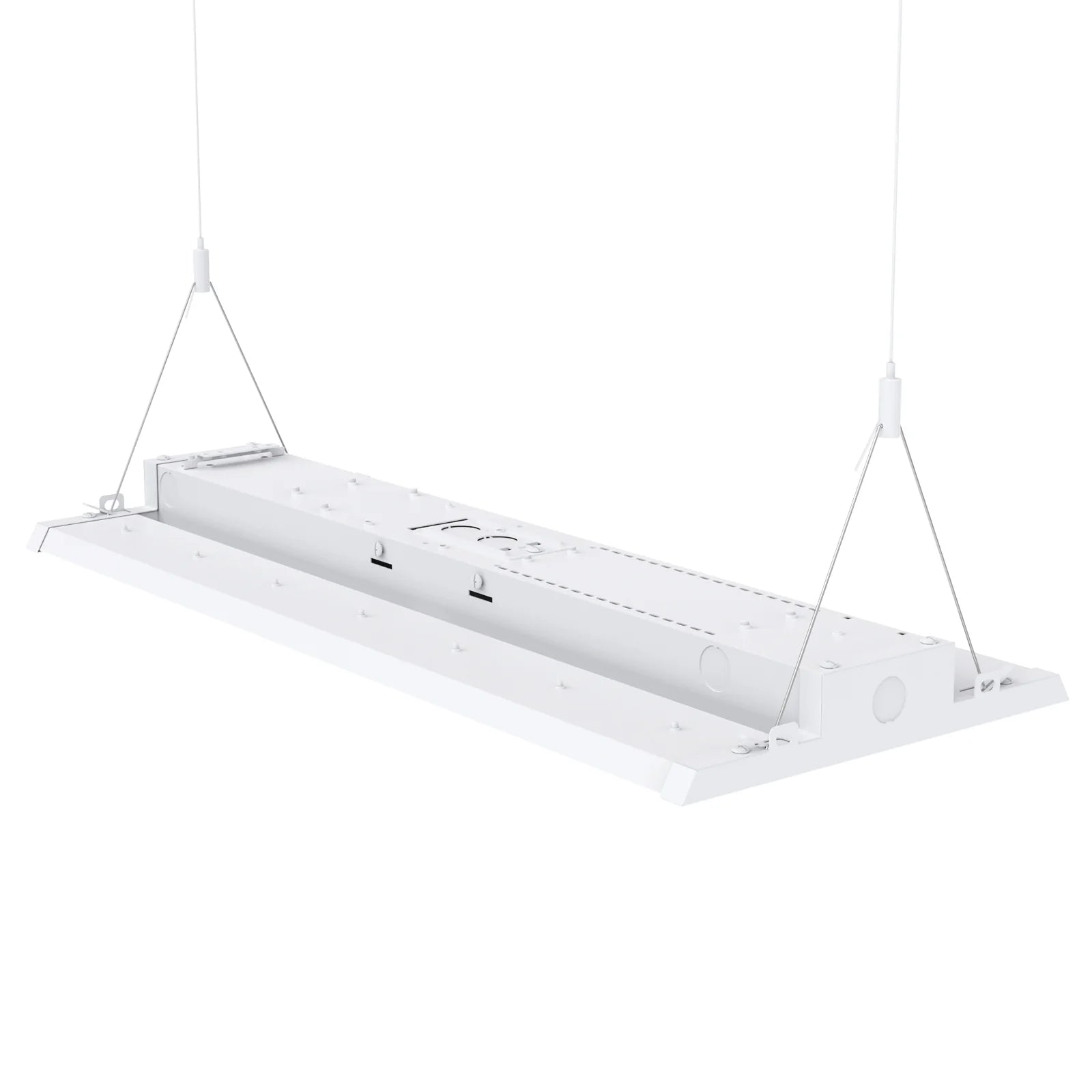

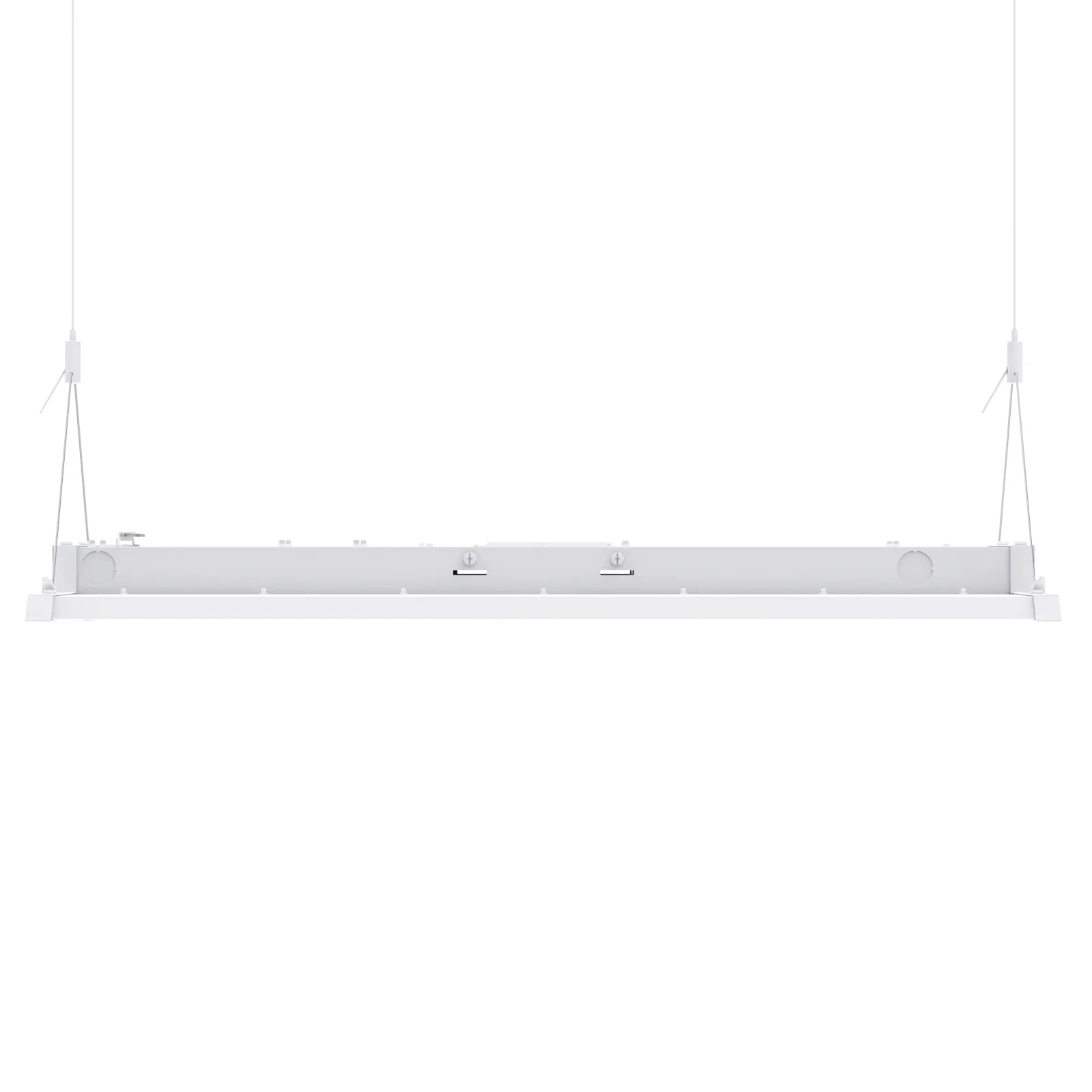

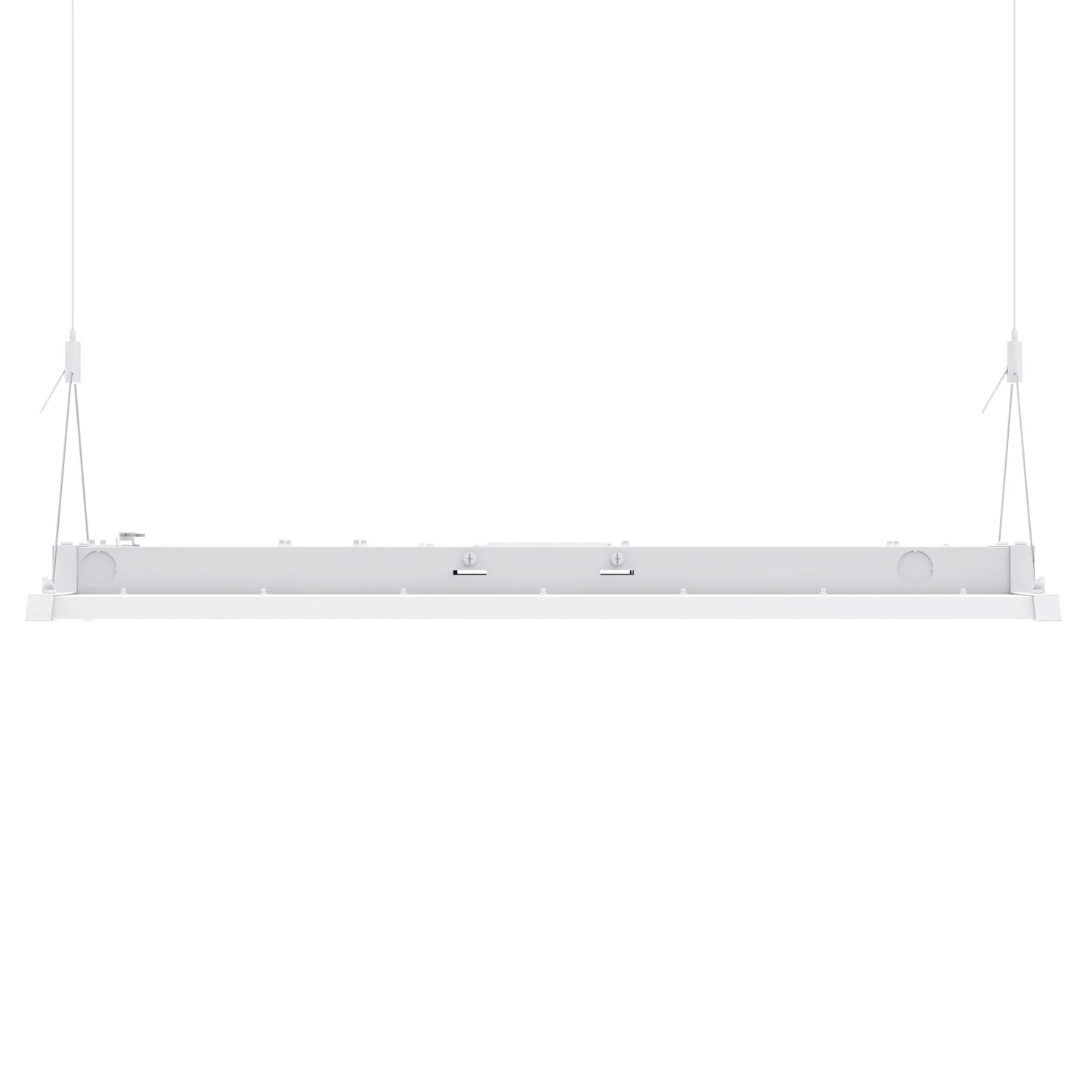

• Steel wire rope mount(Default)
• Pendant mount(Option)
• Surface mount(Option)
Application
• Commercial applications
• Large indoor spaces
• Warehouse
Lifespan
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
