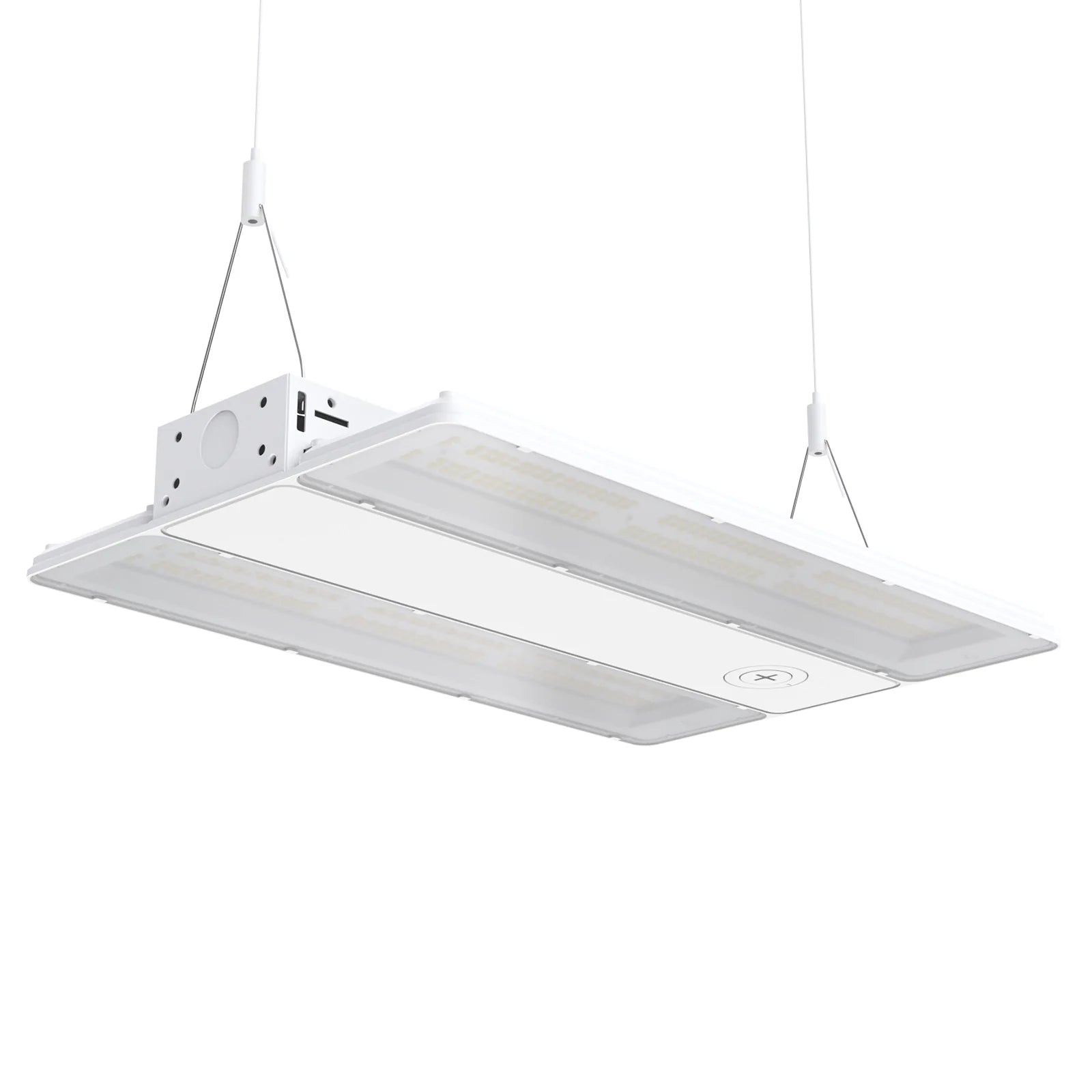

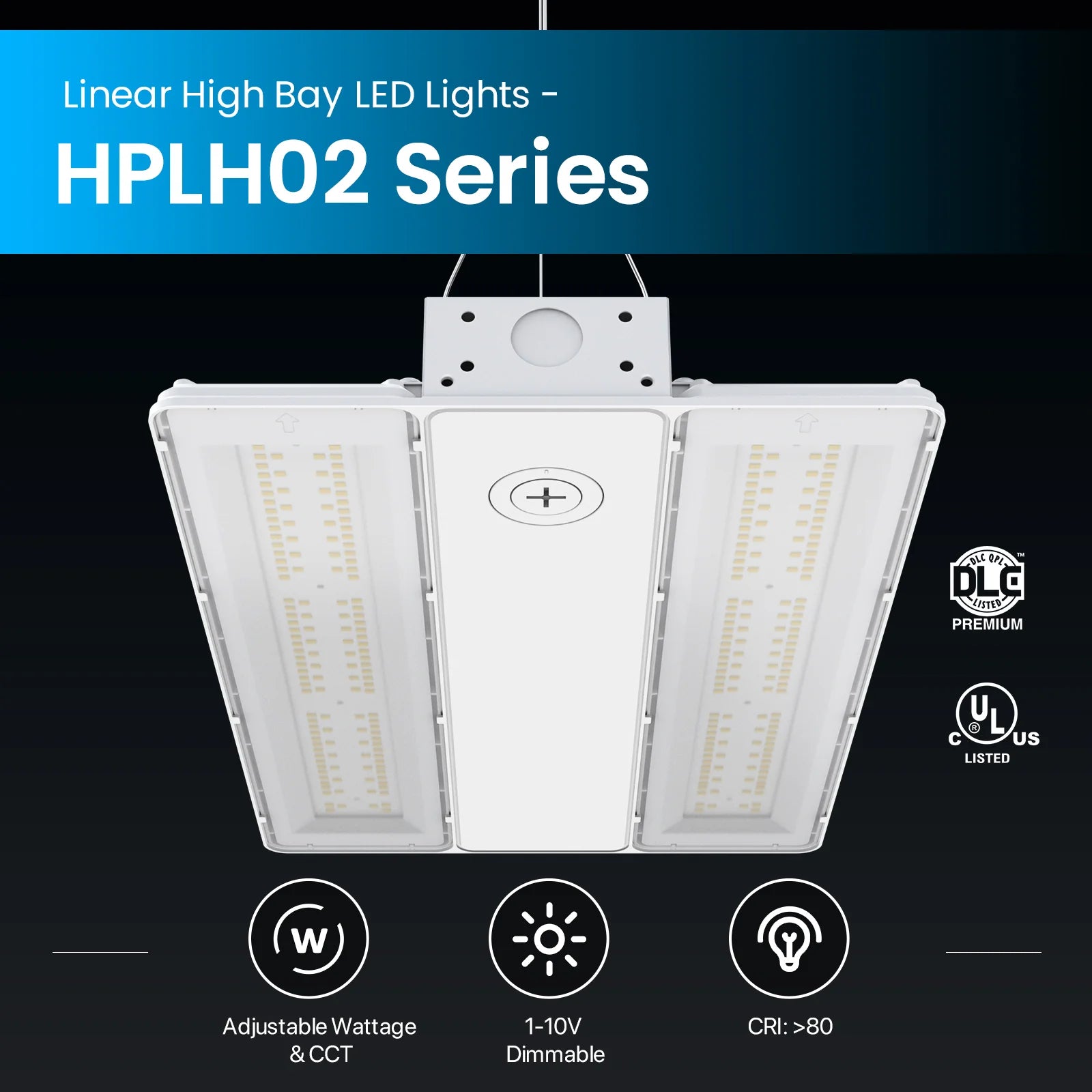

High-performance LED Linear high bay lights, 1-10V dimming, and optional motion sensors. Durable, energy-efficient, UL/cUL/DLC certified, with a 50,000-hour lifespan and 5-year warranty—perfect for warehouses and large indoor spaces.
Construction

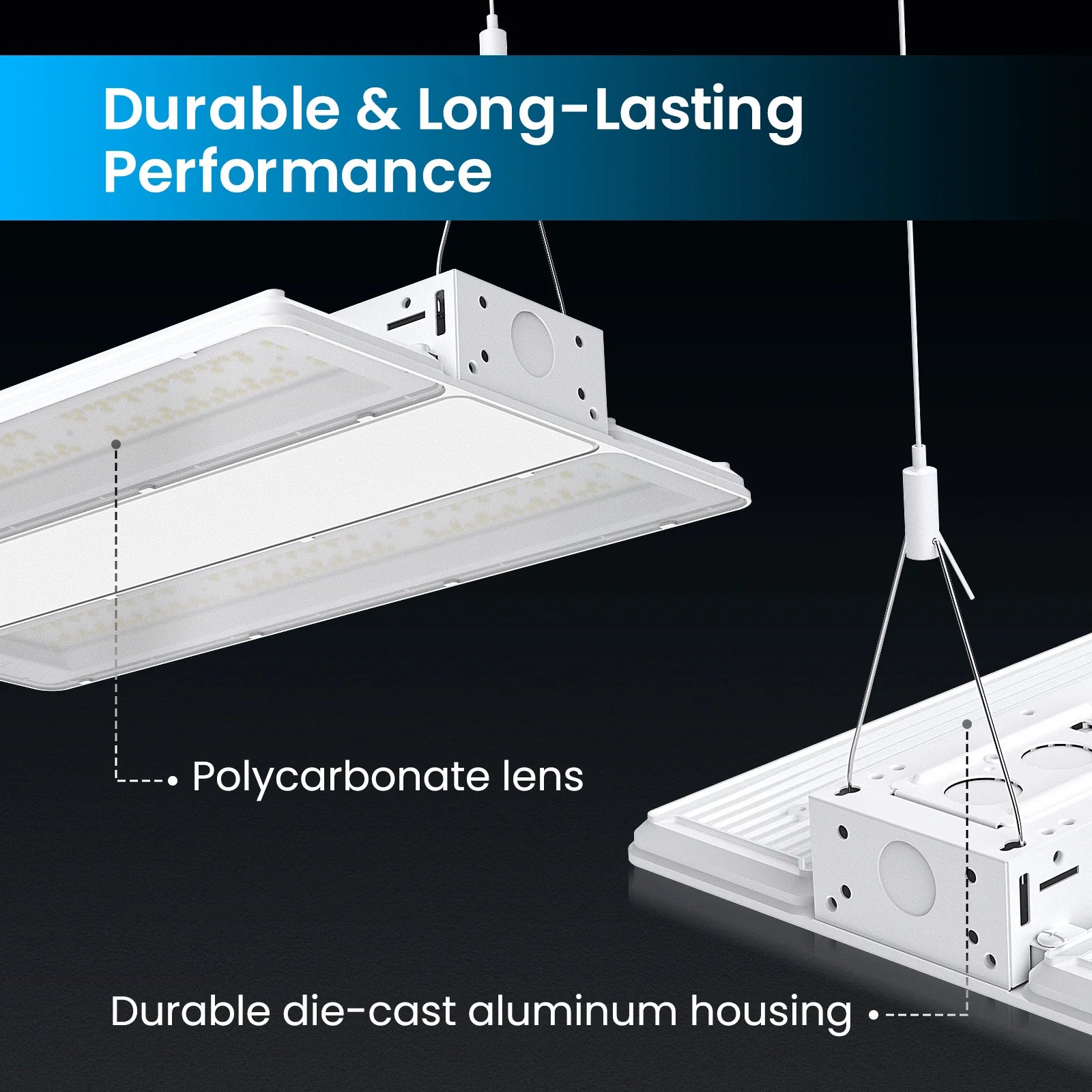

• Durable die-cast aluminum housing and polycarbonate lens.
• 1-10V dimming driver standard for 10% to 100% dimming.

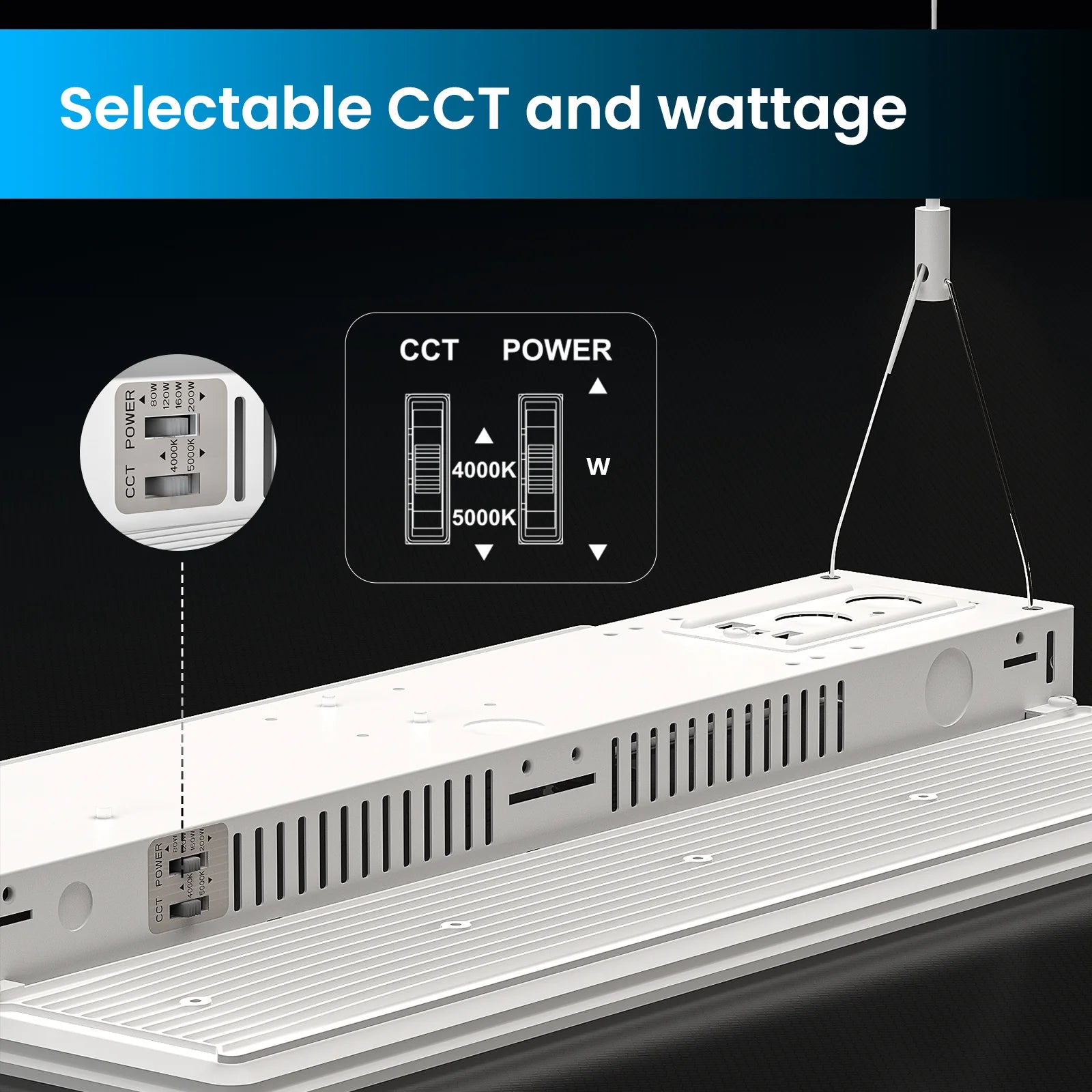

• Selectable CCT and wattage.
Electrical
• Four adjustable Wattage: 100%-80%-60%-40%
• 120-277VAC or 347-480VAC input voltage
• >0.9 power factor
Optics
• CCT adjustable: 4000K,5000K
• CRI: >80
• 140-150LM/W
Weight
• 130W：3.22lb
• 160W&205W：4.32lb/4.41lb
• 250W&300W：6.78lb/6.89lb
• 410W：9.37lb
Model
•LH02-130W-27V(48V)DDK
•LH02-160W-27V(48V)DDK
•LH02-205W-27V(48V)DDK
•LH02-250W-27V(48V)DDK
•LH02-300W-27V(48V)DDK
•LH02-410W-27V(48V)DDK
Note: “27V” represents 120-277VAC, “48V” represents 347-480VAC
Accessories(Optional)
• Conduit Pendant mounting kits
• Surface mounting kits
• Emergency Battery
Certifications
• DLC 5.1 Premium
• UL cUL

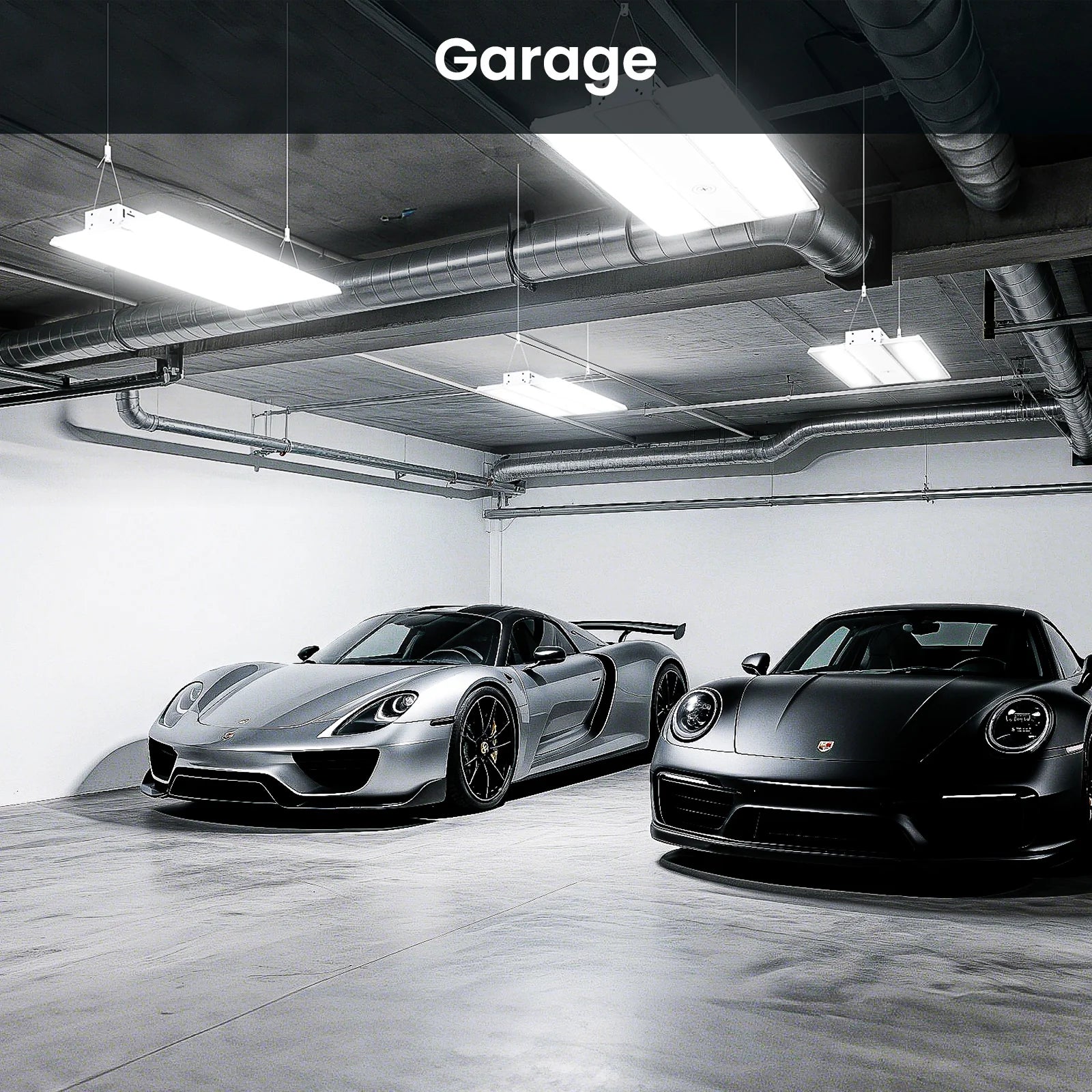

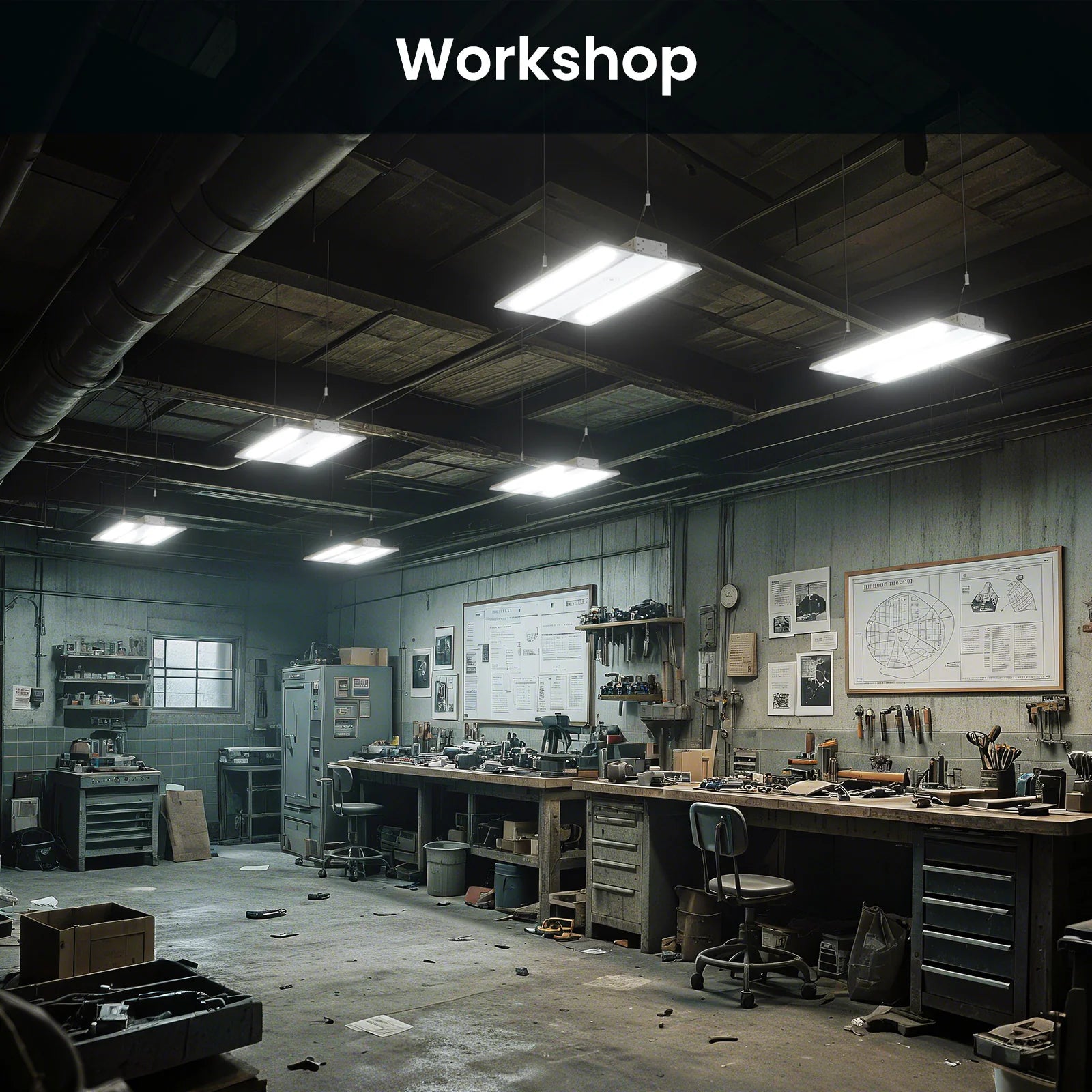

Application

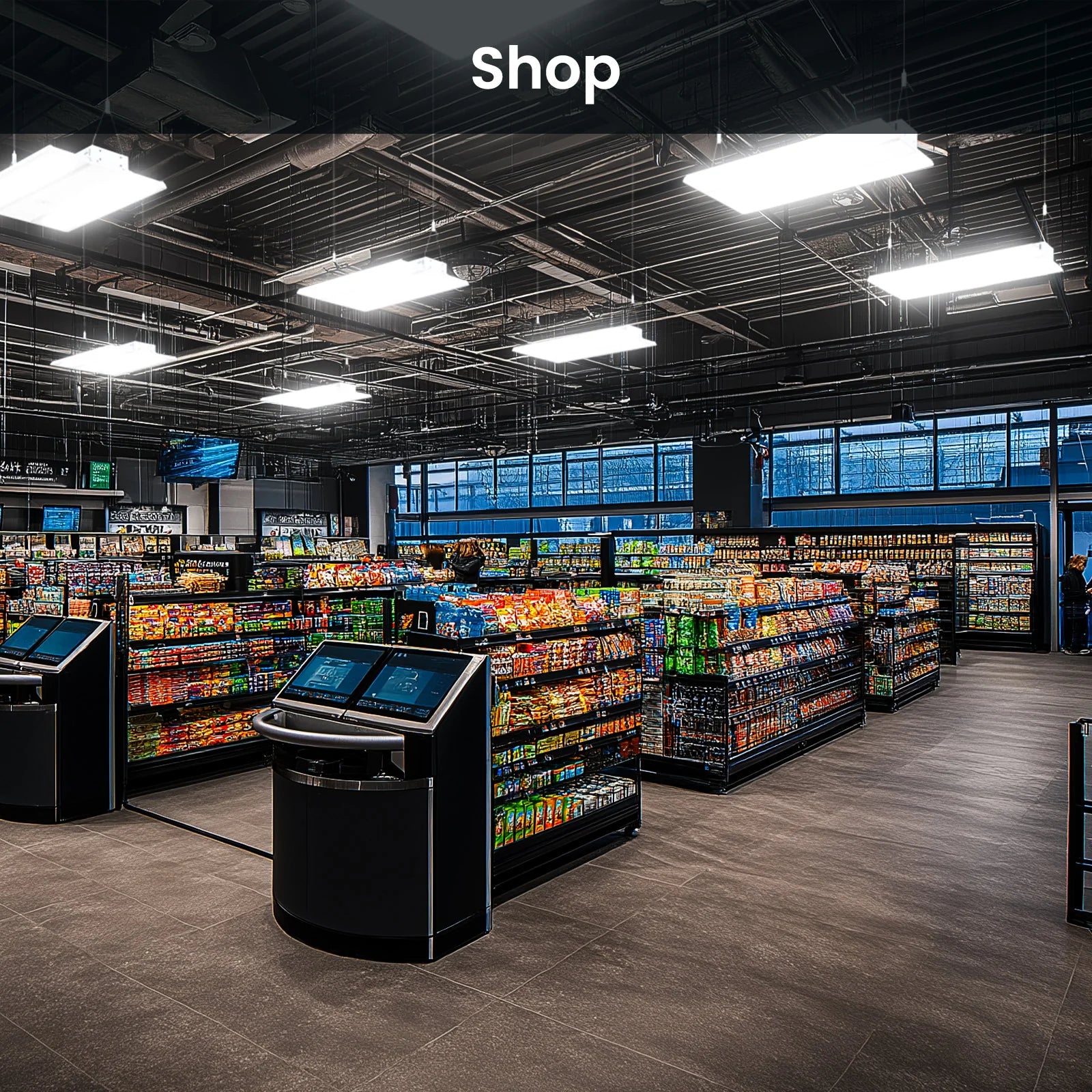

• Commercial applications
• Large indoor spaces

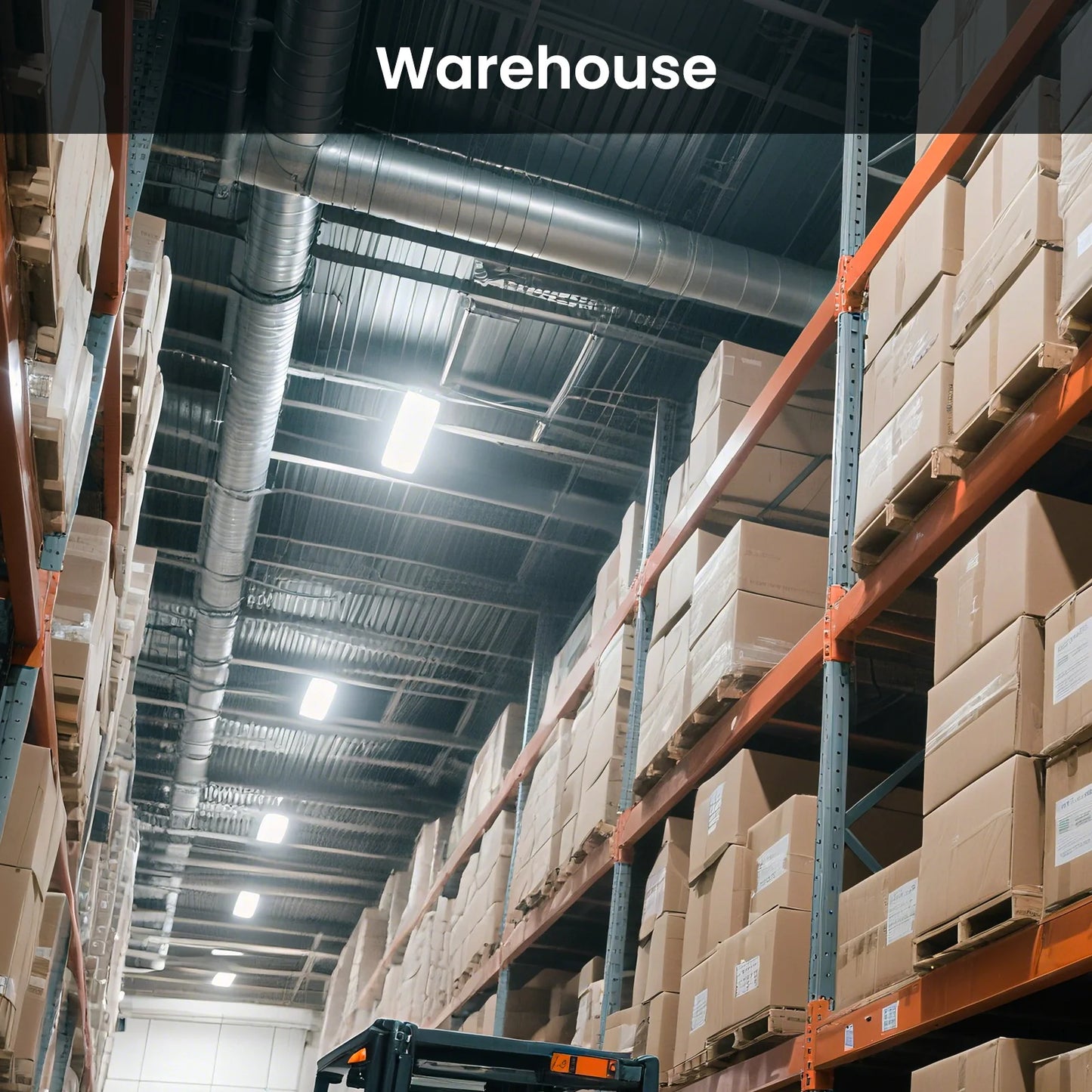

• Warehouse

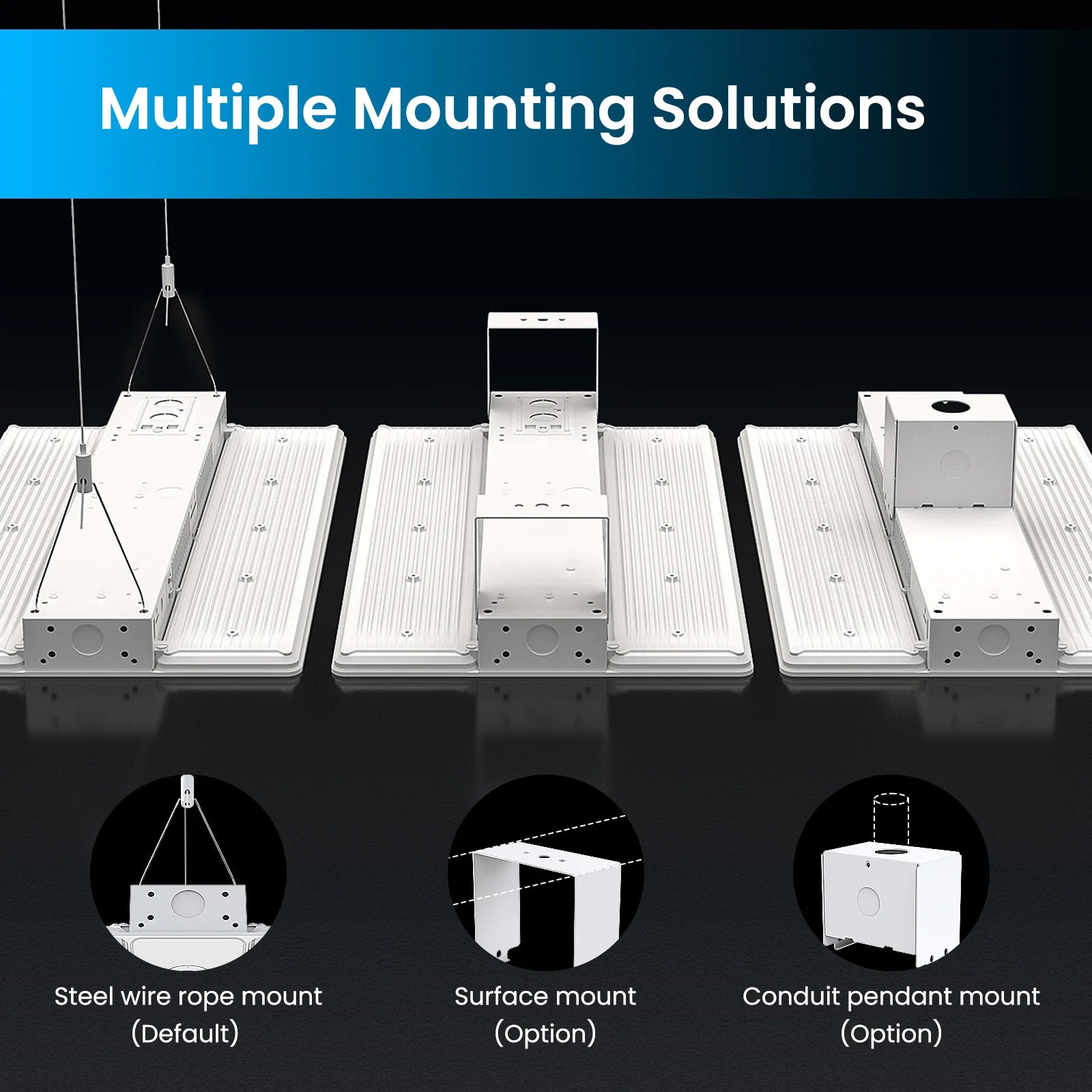

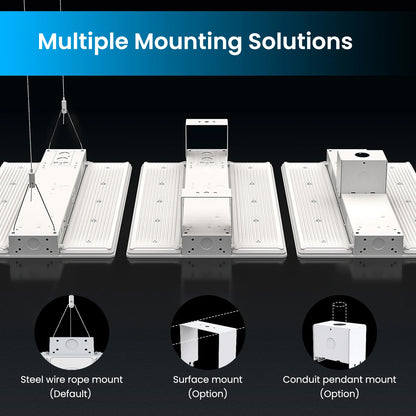

Mount
• Steel wire rope mount(Default)
• Conduit pendant mount(Option)
• Surface mount(Option)
Lifespan
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
